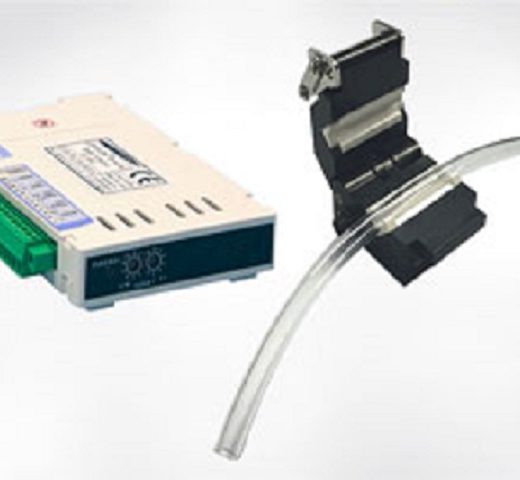

LEVIFLOW® LFSC-D Clamp-On Flow Sensors

Single Use Assembly Benefits

No contamination
No moving parts – no particle generation
Low disposable cost (tubing cost only) with reusable sensor
Improved bubble robustness due to DSP technology
Easy integration into OEM equipment
Easily configurable flow sensor parameters (PC software)
Low-pressure loss
Integrated and configurable totalizer function

Single Use Assembly Technical Data

Two piezoelectric transducers, mounted in the sensor housing, generate and receive an ultrasonic wave. The wave going in direction of the flow (with-stream wave) is accelerated and the wave going against the flow direction (against-stream wave) is slowed down. The two waves are processed by a signal converter. The difference in the transit time of both waves is proportional to the velocity of the fluid.

Available Sizes

2 sizes available to measure 0-20ml/min and 0-80 l/min

Signals

Analog, digital input and digital output

Fluid Temperature

10-60°C

Kinematic Viscosity

0.7 – 10mm²/s

Single Use Assembly Application

High purity liquid processes
Sterile non-invasive flow measurement in Pharmaceutical manufacturing
Biotech process
Single-use disposable applications
