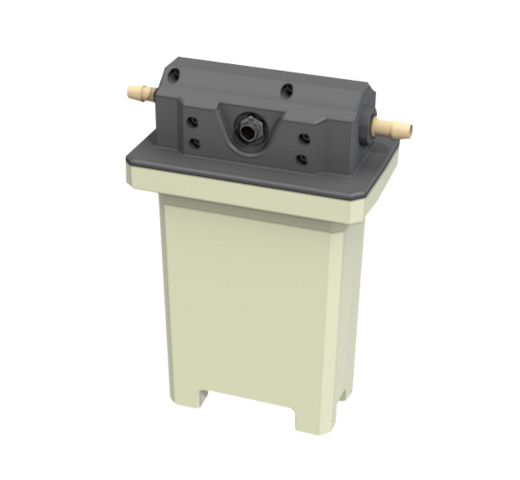

SumoFlo® Single-Use Coriolis Mass Flow Meter

SumoFlo® Coriolis Flow Meter: ±1% Accuracy for Biopharma & Single-Use Applications

The extremely accurate SumoFlo® CPFM-8103-series Single-Use Coriolis Flow Meter provides best-in-class accuracy of ±1% of reading. With flow ranges from 0.05 to 100 kg/min, the SumoFlo® Coriolis Flow Meter come in seven models and is specially designed for measuring liquids in high-purity bio-pharmaceutical and other applications that require all gamma-sterilisable wetted surfaces. Due to patented Coriolis technology, SumoFlo® Flow Meters offer ±1% accuracy of mass flow rate readings that are unaffected by flow regime or variations to the velocity profile, allowing for accurate measurements of bubbly or frothy fluids.

The SumoFlo® Coriolis Flow Meter is the world’s only gamma-sterilisable Coriolis mass flow meter and is available in a disposable, drop-in form factor for single-use applications. The fluid contacting surfaces are made of unreinforced PEEK (Polyether ether ketone) that meet USP Class VI, USP 661, and USP 788 standards.

Single Use Assembly Benefits

Fluid measurement performance is independent of fluid properties; eliminating the need to calibrate on different fluids
Accuracy is unaffected by flow regime (e.g., laminar or turbulent flow) or variations in flow velocity profile
Multiple sensor sizes from 1/8″ to 1″; available with barb or tri-clamp connections
Supports fluid flow ranges from 50 g/min to 100 kg/min.
Disposable drop-in sensor option for single-use applications
CE Marking certified version available
Custom sensor mounting cradle available
Accuracy: ±1% of mass flow rate reading; unaffected by flow regime or variations to the velocity profile

Single Use Assembly Application

Pure water or ultra-high purity chemicals
Chromatography
Fluids with varying density or viscosity
Depth Filtration
Tangential Flow Filtration
