Product

PuraLev LCO-2000 Console

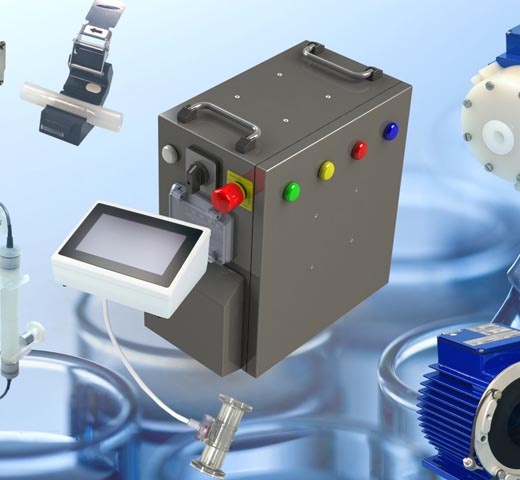

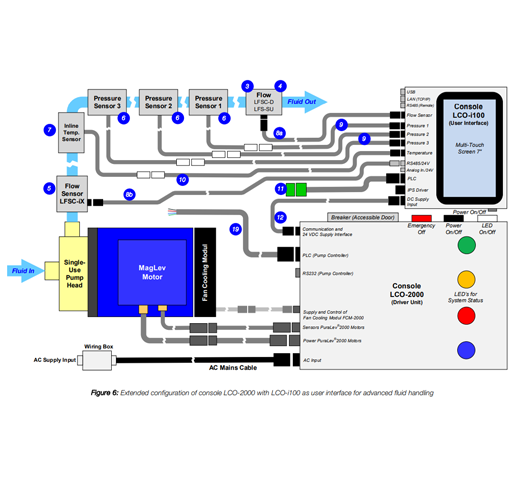

The PuraLev® console system integrates Levitronix® MagLev pumps with LEVIFLOW® ultrasonic flow sensors and adds a sophisticated user interface with enhanced connectivity features. The system allows various operating modes including stand-alone pumping with flow monitoring or flow control, pressure monitoring and control with up to three pressure sensors and temperature monitoring.

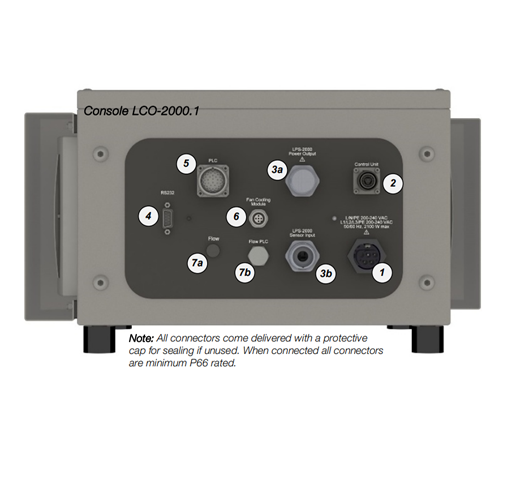

The PuraLev® console LCO-2000 contains the pump controller to drive the PuraLev® 2000 pump motor, an integrated fan cooling system and safety components. The housing is made out of stainless steel with a water protection design (IP54).

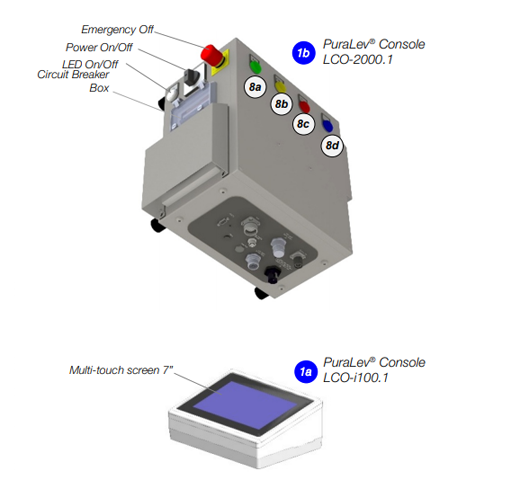

The console LCO-2000 can be controlled by the LCO-i100 console, which features an embedded PC with a 7” multi-touch screen and comes with software for flow control, configuration and monitoring of various sensors. Various integrated sensor signal converter circuits allow connection of LEVIFLOW® single-use and clamp-on flow sensors, and single-use pressure and temperature sensors from suppliers such as PendoTECH.

Make An Enquiry

Single Use Assembly Benefits

  • Precise flow monitoring or control.
  • Integrated signal converters for pressure & temperature monitoring.
  • Precise pressure limitation to avoid potential tube ruptures.
  • Plug and play stand-alone functionality.
  • Intuitive user interface with 7” colour multi-touch.
  • Data collection capabilities.
  • Easily configurable and customizable by software.

Single Use Assembly Application

  • Fluid transfer and recirculation in upstream and downstream bioprocessing.
  • Single-use and multi-use components available.
  • Ideal for RG2+ agents and toxic products due to inherent maximum pressure limitation.
  • Depth filtration, ultrafiltration, defiltration, sterile filtration.
  • Mixing, blending, dilution and filling.

Download

Brochure LCO-2000
