Product

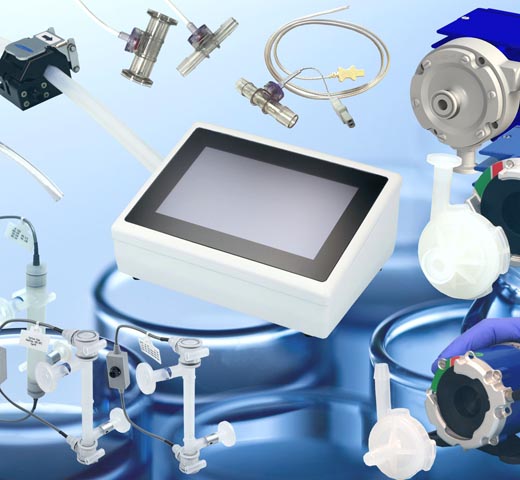

PuraLev LCO-i100 Console

The LCO-i100 consoles for PuraLev 130SU & PuraLev i100SU/MU pumps.

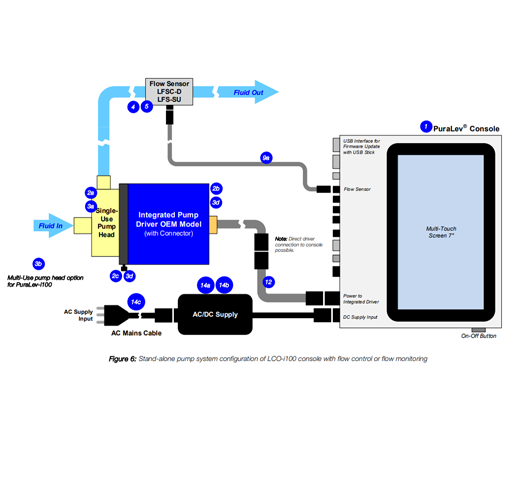

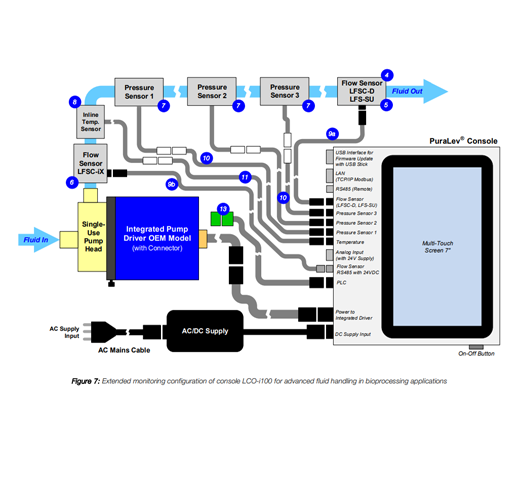

The PuraLev® Console integrates Levitronix® MagLev pumps with LEVIFLOW® ultrasonic flow sensors and adds a sophisticated user interface with enhanced connectivity features. The system allows various operating modes including stand-alone pumping with flow monitoring or flow control, pressure monitoring with up to 3 pressure sensors and temperature monitoring.

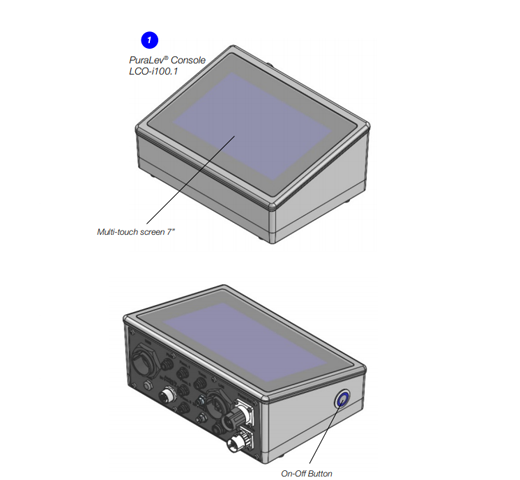

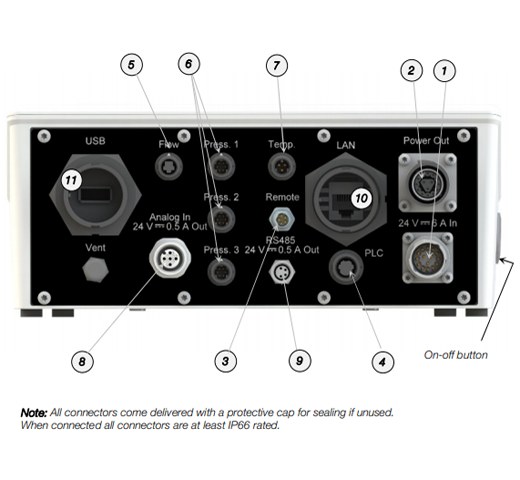

The brain of the PuraLev® Console is an embedded PC with a 7” multi-touch screen and it comes with software for flow control, configuration and monitoring of various sensors. The console can operate a PuraLev® i30 or PuraLev® i100 integrated pump driver. Various integrated sensor signal converter circuits allow connection of LEVIFLOW® single-use and clamp-on flow sensors, and single-use pressure and temperature sensors from suppliers such as PendoTECH.

The console can be placed horizontally on a table or mounted vertically on a wall. The display is rotatable by software.

Make An Enquiry

Single Use Assembly Benefits

  • Precise flow monitoring or control.
  • Integrated signal converters for pressure & temperature monitoring.
  • Precise pressure limitation to avoid potential tube ruptures.
  • Plug and play stand-alone functionality.
  • Intuitive user interface with 7” color multi-touch.
  • Data collection capabilities.
  • Easily configurable and customizable by software.

Single Use Assembly Application

  • Fluid transfer and recirculation in upstream and downstream bioprocessing.
  • Single-use and multi-use components available.
  • Ideal for RG2+ agents and toxic products due to inherent maximum pressure limitation.
  • Depth filtration, ultrafiltration, diafiltration, sterile filtration.
  • Mixing, blending, dilution and filling.

Download

Brochure LCO-i100
