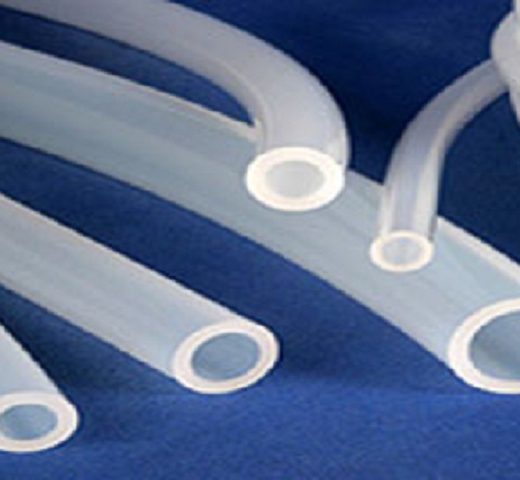

AdvantaSil® APHP: High Pressure Silicone Tubing

ESI Ultrapure offers AdvantaSil® High-Pressure Silicone Tubing by Advantapure® which is a high-quality, cost-effective solution designed for increased flow rates to reduce your processing time. The tubing’s unreinforced characteristic allows for limited pumpability up to 30 psi back pressure and makes it easier to see your process fluids.

AdvantaSil® High-Pressure tubing has undergone extensive physical, chemical and biological testing and meets USP Class VI, FDA CFR 177.2600, ISO 10993, European Pharmacopoeia 3.1.9 and other standards.

AdvantaSil® is a registered trademark of NewAge Industries AdvantaPure.

Single Use Assembly Benefits

Eliminates particulate shedding that can occur when cutting braid reinforced hose.
Allows for processing at higher flow rates.
Full vacuum capabilities on most sizes.
Handles short-run peristaltic pump applications requiring 30 psi back pressure.

Single Use Assembly Technical Data

General temperature range: -65°F (-53.9°C) to 400°F (204.4°C).
Flexible and translucent.
Resists temperature extremes, compression set, chemical attack, ozone, radiation, moisture and environmental exposure.
Sterilisable by autoclave or gamma radiation.
Documented lot traceable with identification on bags.
Available with validated sterility assurance of 10^-6 via gamma irradiation per ISO 11137 method VDmax 25.
Complete validation package and BPOG test results available upon request.

Important Note:

Specific cutting techniques are strongly recommended for AdvantaSil APHP High-Pressure Silicone Tubing. APHP must be cut with a chevron-style cutter at a 90-degree angle to the tubing, leaving a smooth, non-jagged, perpendicular cut at the tubing end. See the video above for more information.

Single Use Assembly Application

AdvantaSil High Pressure is the optimal choice for Single-Use applications such as:

TFF
Virus Filtration
Inline Integrity Testing of Filtration Assemblies
High Volume Fluid Transfer

AdvantaSil High Pressure is not intended for implantation or continuous steam applications.

Download

Download Brochure
